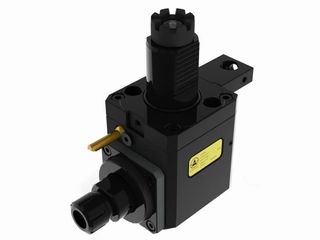

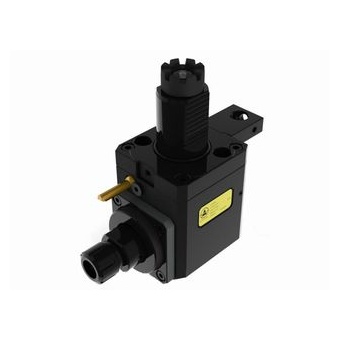

THB-B15.65-40D VDI40-MT-TER20 徑向動(dòng)力刀座(ER彈性攻牙)

產(chǎn)品介紹

m_prod2014042500079
◎ VDI40-MT-TER20 Radial Tapping Collet Driven Tool Holder 65mm◎ Tool Holder is produced in accordance with DIN 69880.◎ Driven Coupling is according to SPUR MT TOEM.◎ ER Collet is according to DIN6499.◎ For left hand and right hand turret.

THB-B15.65-40D VDI40-MT-TER20 徑向動(dòng)力刀座(ER彈性攻牙)



下載 DWG STP PDF
  • 描述
  • IM_EXTRA_TAB_ADD1
  • 規(guī)格

◎ VDI40-MT-TER20 Radial Tapping Collet Driven Tool Holder 65mm
◎ Tool Holder is produced in accordance with DIN 69880.
◎ Driven Coupling is according to SPUR MT TOEM.
◎ ER Collet is according to DIN6499.
◎ For left hand and right hand turret.

◎ Gear Ratio：1：1
◎ R.P.M.：Max. 3,000 RPM

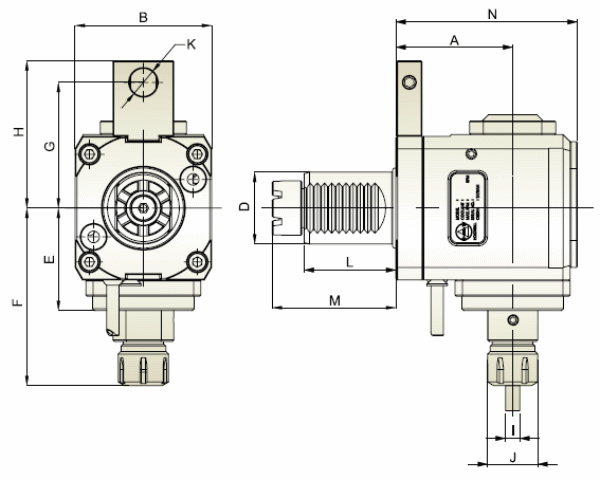

Model No. A B C D E F G H I J K L M N N.W. (KG)
THB-B15.65-40D 65 76 32 40 57 99 56/63/70 68/75/82 M3~M12 34 16 51 68 101 4.9

Unit:mm
