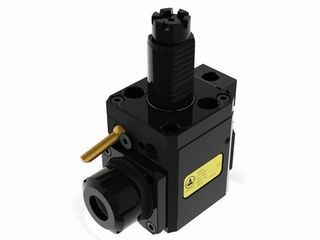

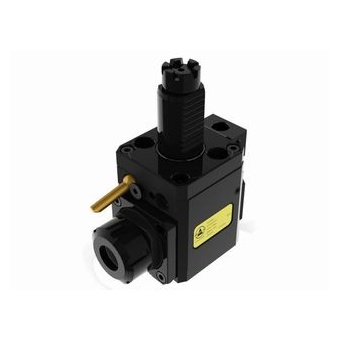

THB-B06.90-40D VDI40-MT-ER40 徑向動力刀座

產品介紹

m_prod2014042500077
◎ VDI40-MT-ER40 Radial Driven Tool Holder◎ Tool Holder is produced in accordance with DIN 69880.◎ Driven Coupling is according to SPUR MT TOEM.◎ ER Collet is according to DIN6499.◎ For left hand and right hand turret.◎ Further option : 6000 RPM

THB-B06.90-40D VDI40-MT-ER40 徑向動力刀座



下載 DWG STP PDF
  • 描述
  • IM_EXTRA_TAB_ADD1
  • 規格

◎ VDI40-MT-ER40 Radial Driven Tool Holder
◎ Tool Holder is produced in accordance with DIN 69880.
◎ Driven Coupling is according to SPUR MT TOEM.
◎ ER Collet is according to DIN6499.
◎ For left hand and right hand turret.
◎ Further option : 6000 RPM


◎ Gear Ratio：1：1
◎ R.P.M.：Max. 4,000 RPM

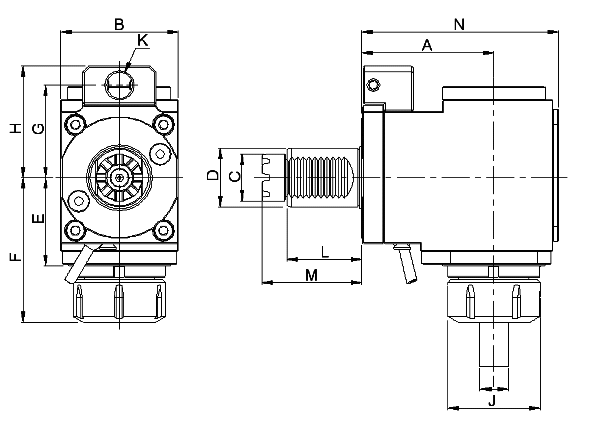

Model No. A B C D E F G H I J K L M N N.W. (KG)
THB-B06.90-40D 90 80 32 40 60 98.5 63/70 73/80 ER40(4~26) 63 16 51 68 134 8.1

Unit:mm
