THB-B05.65-40C VDI40-5482-ER32 徑向動力刀座

產品介紹

prod2014070500005
prod20140705000052020-06-16_2_30_15
◎ VDI40-5482-ER32 Radial Driven Tool Holder65mm ◎ Tool Holder is produced in accordance with DIN 69880. ◎ Driven Coupling is according to DIN 5482. ◎ ER Collet is according to DIN 6499. ◎ For left hand and right hand turret. ◎ Further option : 6000 RPM ...了解更多

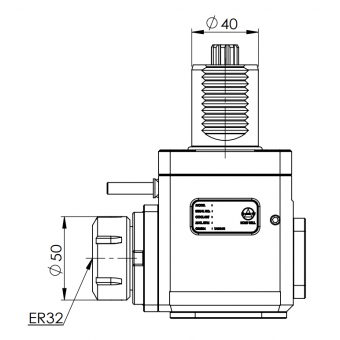

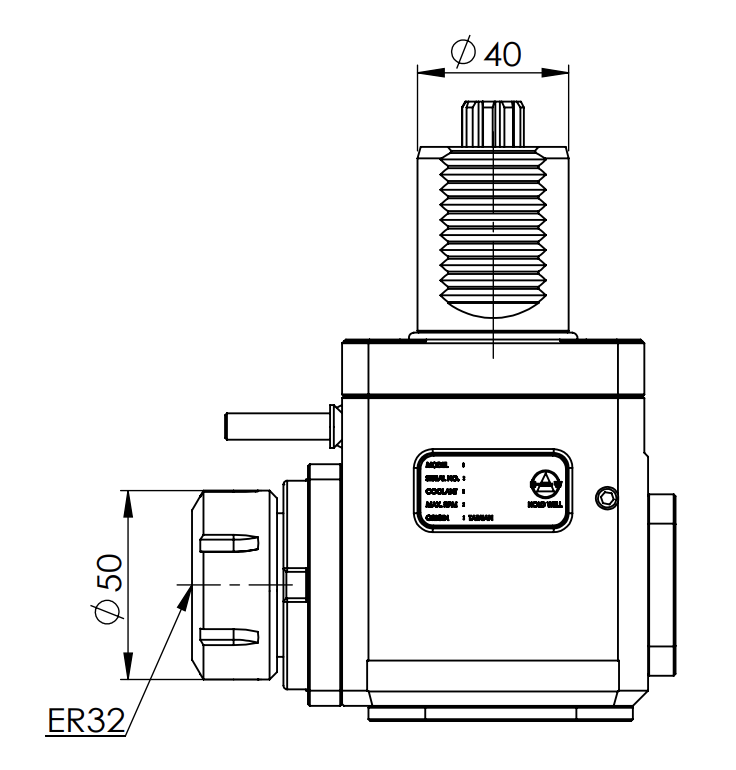

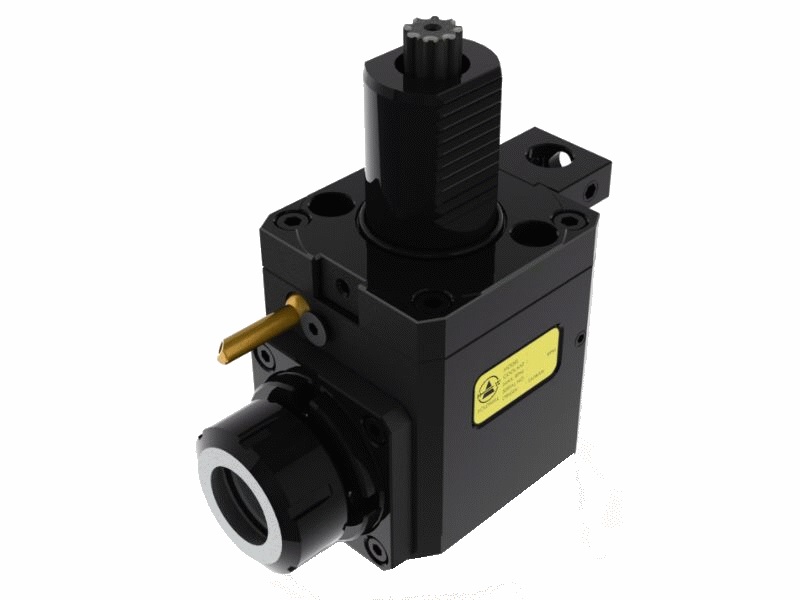

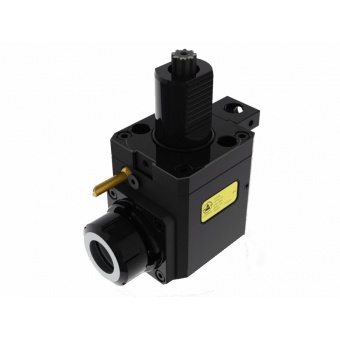

THB-B05.65-40C VDI40-5482-ER32 徑向動力刀座



下載 DWG STP PDF
  • 描述

◎ VDI40-5482-ER32 Radial Driven Tool Holder65mm

◎ Tool Holder is produced in accordance with DIN 69880.

◎ Driven Coupling is according to DIN 5482.

◎ ER Collet is according to DIN 6499.

◎ For left hand and right hand turret.

◎ Further option : 6000 RPM
