THB-R29.115-50B VDI50-5480 軸向擺動滾齒動力刀座

產品介紹

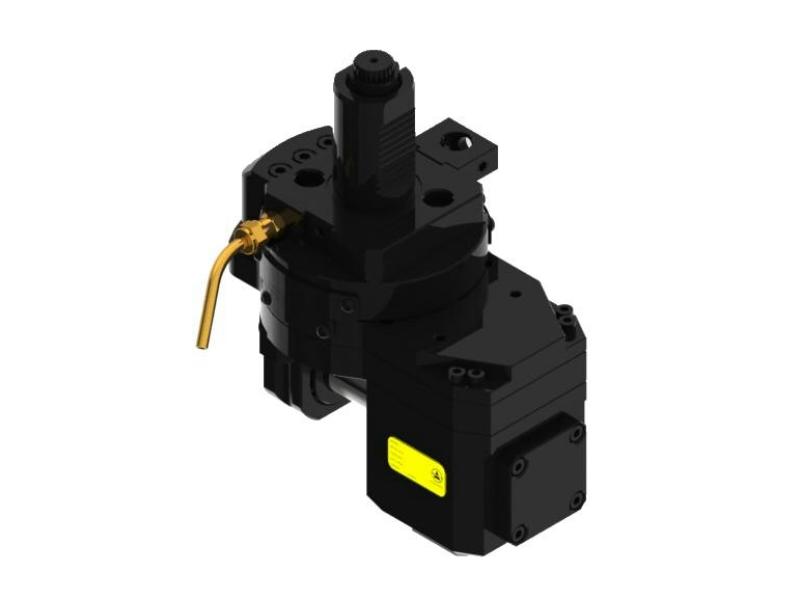

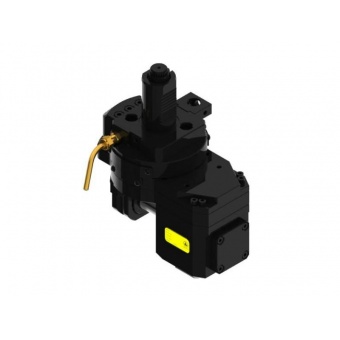

prod2014042100045

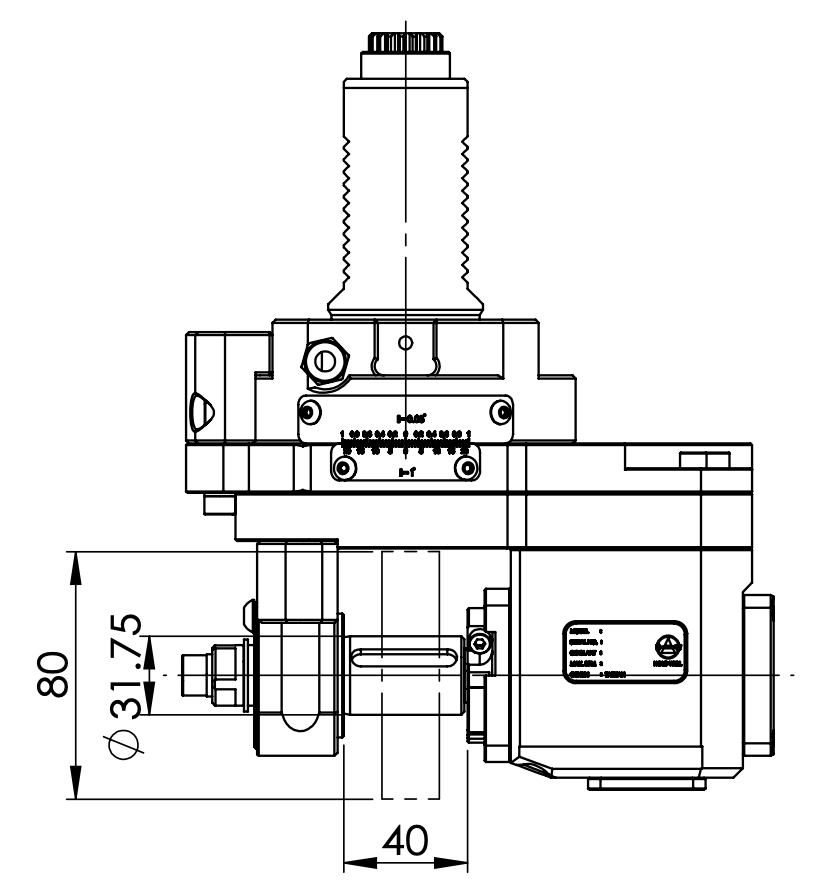

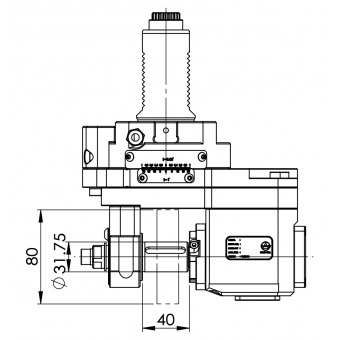

prod20140421000452020-06-18_10_30_23
◎ VDI50-5480 Axial Swivel Gear Hobber Driven Tool Holder ◎ Tool Holder is produced in accordance with DIN 69880. ◎ Driven Coupling is according to DIN 5480. ◎ For left hand and right hand turret. ◎ Cutting angle can be set from +20 to -20 degree for various applications. ◎ Suitable ...了解更多

THB-R29.115-50B VDI50-5480 軸向擺動滾齒動力刀座



下載 DWG STP PDF
  • 描述

◎ VDI50-5480 Axial Swivel Gear Hobber Driven Tool Holder

◎ Tool Holder is produced in accordance with DIN 69880.

◎ Driven Coupling is according to DIN 5480.

◎ For left hand and right hand turret.

◎ Cutting angle can be set from +20 to -20 degree for various applications.

◎ Suitable for machining Spur Gear and Bevel Gear.
