THB-B06.145-40A VDI40-1809-ER40 徑向動力刀座 145mm

產品介紹

prod2014041600023
prod20140416000232020-06-18_10_10_01
◎ VDI40-1809-ER40 Radial Driven Tool Holder ◎ Tool Holder is produced in accordance with DIN 69880. ◎ Driven Coupling is according to DIN 1809. ◎ ER Collet is according to DIN 6499. ◎ For left hand and right hand turret. ◎ Further option : 6000 RPM ...了解更多

THB-B06.145-40A VDI40-1809-ER40 徑向動力刀座 145mm

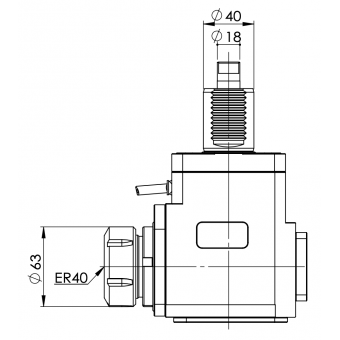

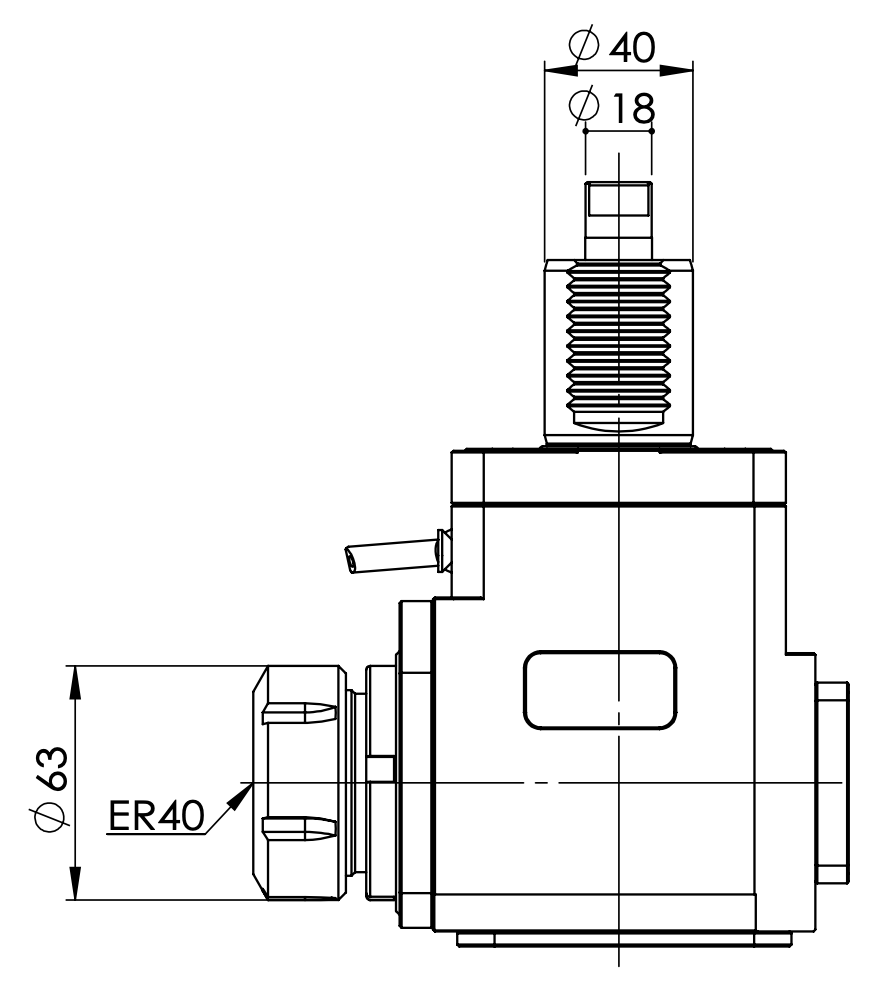

下載 PDF DWG
  • 描述

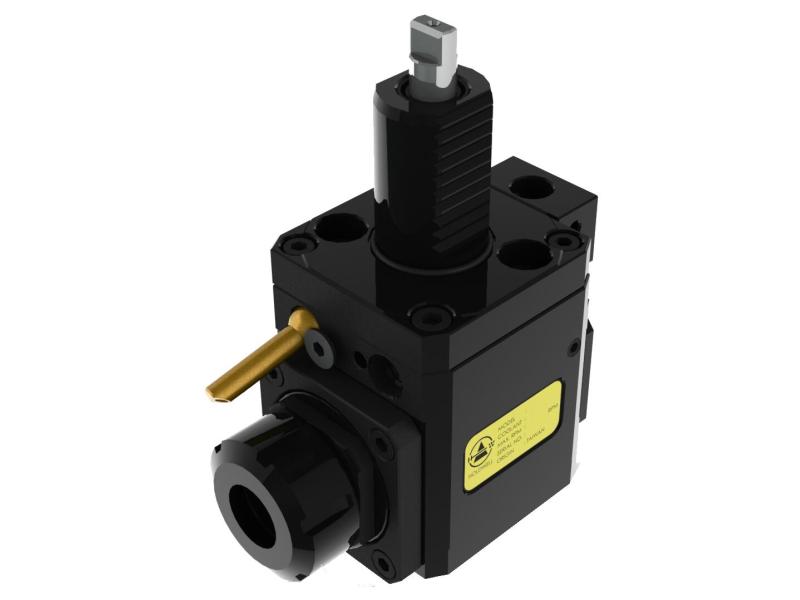

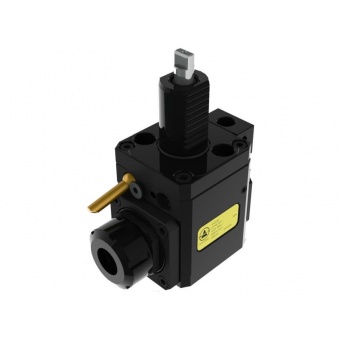

◎ VDI40-1809-ER40 Radial Driven Tool Holder

◎ Tool Holder is produced in accordance with DIN 69880.

◎ Driven Coupling is according to DIN 1809.

◎ ER Collet is according to DIN 6499.

◎ For left hand and right hand turret.

◎ Further option : 6000 RPM
