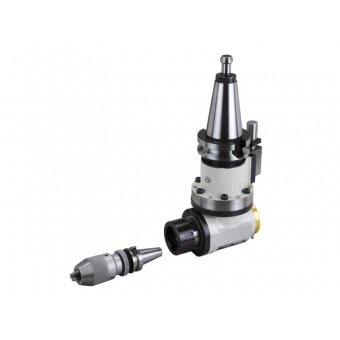

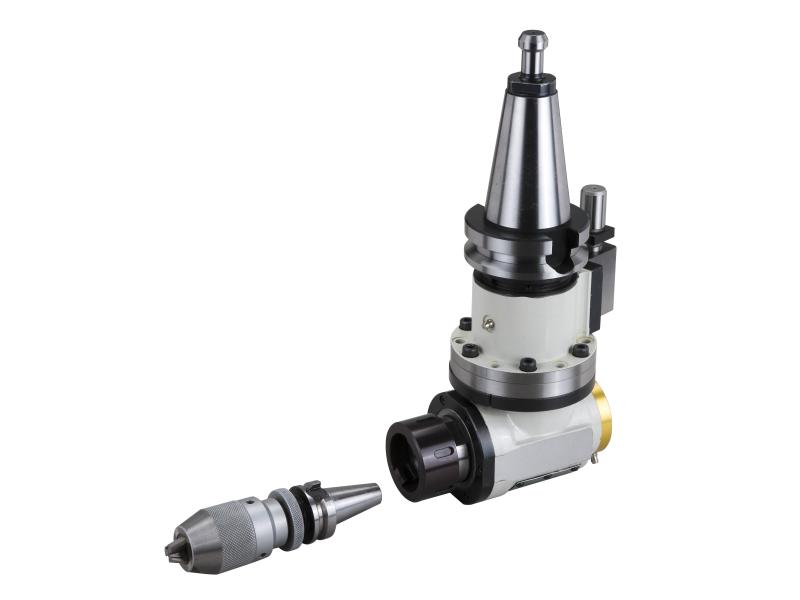

AHB-CAT40-BT30 90度角度頭

產品介紹

prod2014033000053
prod2014033000053tempsnip_1848201220
◎ CAT40-BT30 90° Angle Head (AHB Type)◎?Run-out：0.002 mm◎?Material：Ductile Cast Iron◎?R.P.M.：Max. 6000 RPM◎?Torque : Max. 70 Nm◎?Drilling : Max. 20 mm◎?Tapping : Max. M16◎?Gear Ratio：1：1◎?Standard Accessory：Hook Spanner, Open End Wrench, BT Nut◎?Output Rotat ...了解更多

AHB-CAT40-BT30 90度角度頭



  • 描述
  • IM_EXTRA_TAB_ADD1

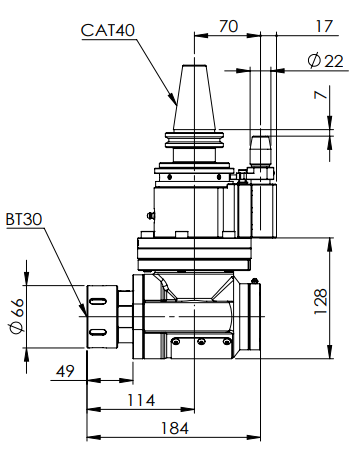

◎ CAT40-BT30 90° Angle Head (AHB Type)
◎?Run-out：0.002 mm
◎?Material：Ductile Cast Iron
◎?R.P.M.：Max. 6000 RPM
◎?Torque : Max. 70 Nm
◎?Drilling : Max. 20 mm
◎?Tapping : Max. M16
◎?Gear Ratio：1：1
◎?Standard Accessory：Hook Spanner, Open End Wrench, BT Nut
◎?Output Rotation : Reverse to Input Rotation

◎ The body is made of Ductile Cast Iron.
◎ High strength steel; stable machining.
◎?The output interface of BT30 ensures wide-range application with various BT30 tool holders.
